Split-Unit Crimping Tools |
| |

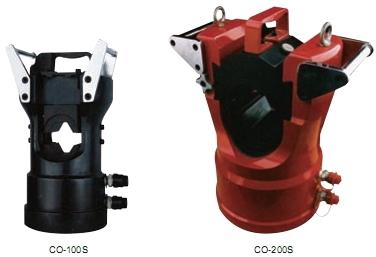

CO-100S / 200S
|
|
|
| |
|
|
 |
|
It is specially made of high carbon steel raw materials by means of CNC processing,with good quality and high tension stressl.compression ratio of mould can be calculated according to the pressed objects;single circuit can be furnished with single circuit pump and double dircutis
can be furnished with double cir cuit spump;in time of outdoor construction,engine electric gener ator or engine pump can be furnished to make construction conducted, in a quickest and safe way for only 8-12 seconds eachtime. Hardware fittings are manufactured in accordance
with state standard and CNC linear cutting dimension standard with precise accuracy degree. |
|
|
|
|
| |
|
|
CHY-150 |
|
|
| |
|
|
|
|
This machines is used to emboss the joint of copper/aluminium conductros to strengthen the conduction of eectricity and extend the life of maintainance.
Have no distortion and burr-free. the slotting design makes the unifrorm force on the conductors.
Single oil flow with high, effective pressure. |
| |
|
|
Model |
Mar applicable diameter |
Crimping force |
Piston travel |
Size |
Weight |
Package |
Remark |
Steel Alu Casing pipe, Steel Casing pipe |
CO-100S |
(Steel AIu Casing pipe14~76mm2) |
100 ton |
24mm |
374x140mm |
40Kg |
Wood case |
Two-way |
|
(Steel Casing pipe 36mm) |
|
|
|
|
|
electric pump |
CO-200S |
14~90mm2 |
200 ton |
35mm |
472x250mm |
97Kg |
Wood case |
Two-way |
(Steel AIu Casing pipe14~90mm2) |
electric pump |
(Steel Casing pipe 50mm) |
|
CHY-150 |
Steel, Al 150 x 15 |
900 ton |
|
|
55Kg |
Wood case |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
